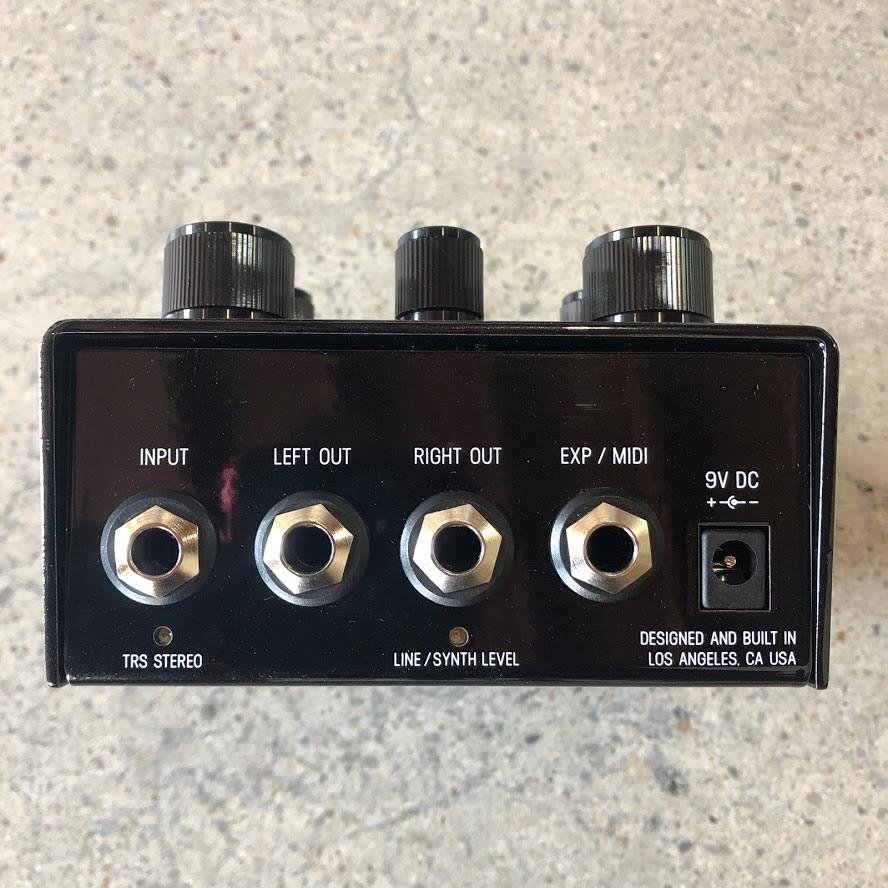

meris ottobit jr pedal Meris Ottobit Jr

meris ottobit jr pedal Meris Ottobit JrAUDIO IN >> VIDEO GAME OUT To call it a bitcrusher would be an insult. The triggered stutter and pitch filter crush sequencers take you to side scrolling, coin collecting maze worlds. Add in a resonant low pass that competes with the best analog synths and grandpa SID would be proud. Features Handcrafted Algorithms Variable Sample Rate and Bit Crushing Vintage Synth inspired Low Pass Filter Triggered Stutter Effects Sequencer module for Pitch, Filter

AUDIO IN >> VIDEO GAME OUT - To call it a bitcrusher would be an insult. The triggered stutter and pitch/filter/crush sequencers take you to side scrolling, coin collecting maze worlds. Add in a resonant low pass that competes with the best analog synths and grandpa SID would be proud.

Features

• Handcrafted Algorithms
• Variable Sample Rate and Bit Crushing
• Vintage Synth inspired Low-Pass Filter
• Triggered Stutter Effects
• Sequencer module for Pitch, Filter or Decimation pattern sequencing
• Tap Tempo for Sequencer and Stutter
• Stereo input and output
• Switchable input/output headroom level for Guitar, Synthesizer or Line levels
• Expression pedal control over all parameters simultaneously
• Presets available via external 4-Preset switch or MIDI
• MIDI in/out over TRS via the EXP jack
• Remote Tap Tempo Switch capable via the EXP jack
• Premium analog signal path and 24-bit AD/DA w/32 bit floating point DSP
• Premium Analog Devices JFET input section
• Color – glossy black with subtle flake
• Designed and built in Los Angeles, California U.S.A.

Specifications

• Premium quality 24 bit A/D and D/A
• 32 Bit floating point DSP hardware
• Premium low noise Analog signal path throughout
• Analog Devices JFET input circuitry
• Selectable True Bypass (Relay) or Analog Buffered Bypass
• Durable black powder coat with fine metal flake
• Current draw < 150 mA
• Dimensions – 4.25″ wide, 4.5″ long, 2″ tall
